Front suspension fork cartridges Honda CBR1000RR Fireblade / eC-ABS 2012 - 2016 | made by Matris Italy

#F25H226SA

#F25H226SA

#F25H226SA

#F25H226SA

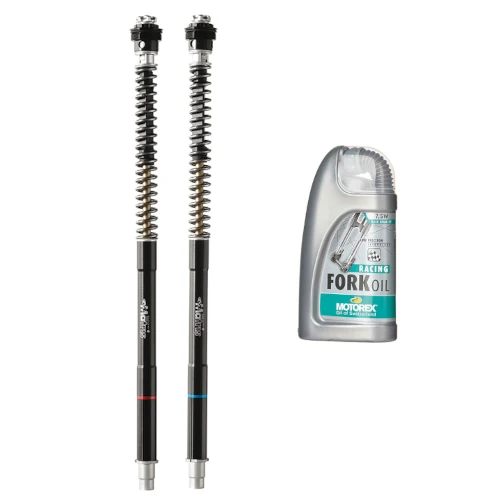

The F25SA sealed kit is the top of Matris hydraulic fork cartridge range.
Especially suitable for sports and racing use.

It fully replaces all existing original internals, transforming the fork in a new fully-adjustable damping system.

Adjustments:

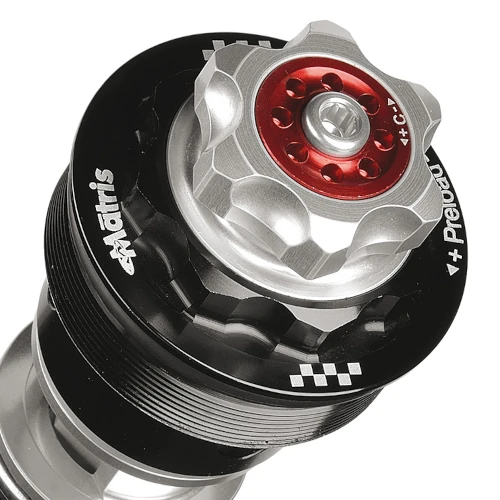

- Compression (range 38 clicks)

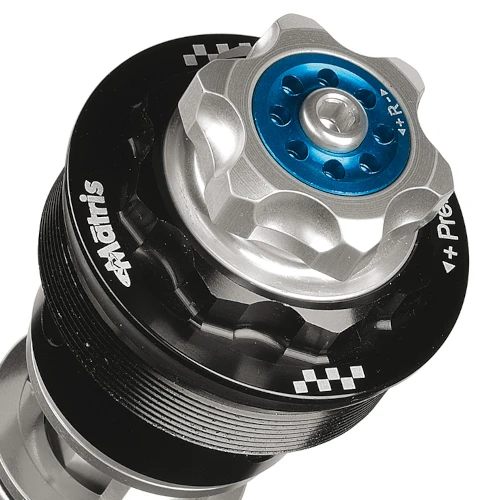

- Rebound (range 38 clicks)
- Preload with click reference (range 15 mm).

It improves performance increasing damping coefficient.
It avoids the risk of fluid cavitation.
It offers greater and easier set-up customization.

It decreases weight by using lightweight alloys for all components.
Linear springs made of Si-Cr steel.
Spring guides made of technopolymer.
Pumping rods diameter 12 mm made of aluminum.
Cartridge cylinders made of aluminum.

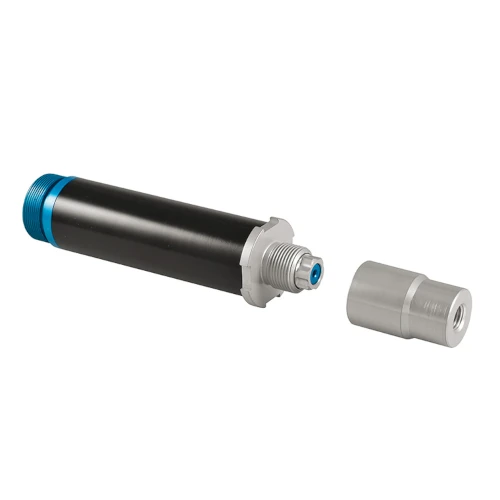

It allows fast disassembly of the hydraulic cartridge unit without removing fork.

It is fully and easily overhaul for proper and regular maintenance.

The cartridge kit is ready to fit and pre-assembled (sealed with oil inside).
No modification to the original fork is required.
The kit includes specific high sliding fluid.

By indicating the pilot weight in the order notes, we will mount the specific springs for your needs.

#F25H226R

#F25H226R

#F25H226R

For track and fast-road use.

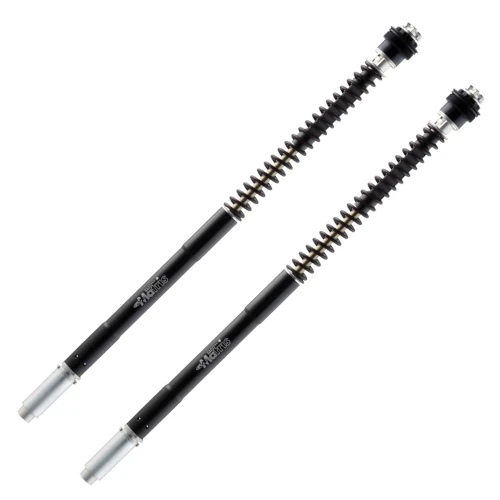

The F25R hydraulic cartridge kit completely replaces all the existing original fork internals.

It allows full adjustments of:
- Compression (range 38 clicks)
- Rebound (range 38 clicks)
- Preload with click reference (range 15 mm).

Performance, handling, stability and damping sensitivity are significantly increased.
Each adjustment click makes a difference to the damping and can be felt.

Spring guides made of technopolymer.
Linear springs made of Si-Cr steel that can be changed without removing fork from the bike.
Pumping rods made of aluminum.
Cartridge cylinders made of aluminum.

The kit is supplied with specific high sliding fluid.

It is fully and easily overhaul for a proper and regular maintenance.

By indicating the pilot weight in the order notes, we will mount the specific springs for your needs.
